Description:

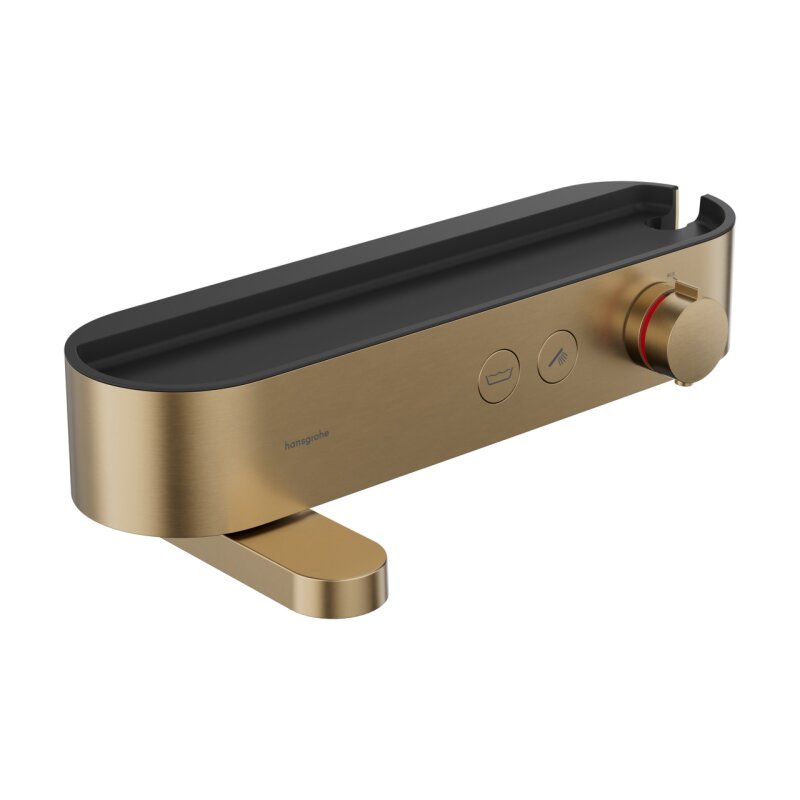

Surface-mounted tub DN15 BBR
- swiveling bath spout
- 2 consumers
- simultaneous use of 2 consumers
- convenient switching on/off of 2 Consumers via select button
- Temperature and volume control
- CoolContact on the thermostat: Prevents the from heating up Housing and makes showers like this safer
- maximum flow rate at 3 bar: 18.7 l/min
- Flow for bath inlet at 3 bar: 18.7 l/min
- Flow rate for hand shower at 3 bar: 15.9 l/min
- Min. operating pressure: 1 bar
- Max. operating pressure: 10 bar
- Safety lock at 40 degrees C
- Temperature limit adjustable
- with isolated water supply
- Backflow preventer
- Intrinsically safe against backflow DIN EN 1717
- with silencer
- suitable for instantaneous water heaters
- Plastic shelf
- Shelf surface: graphite
- Connection type: G 1/2
- Connection size: DN15
- Pitch size: 150 +- 12 mm
- Sound group: I
- Flow class: B, O
- Integrated dirt trap
- Thermostat comes with buttons Hand shower and bathtub
