Description:

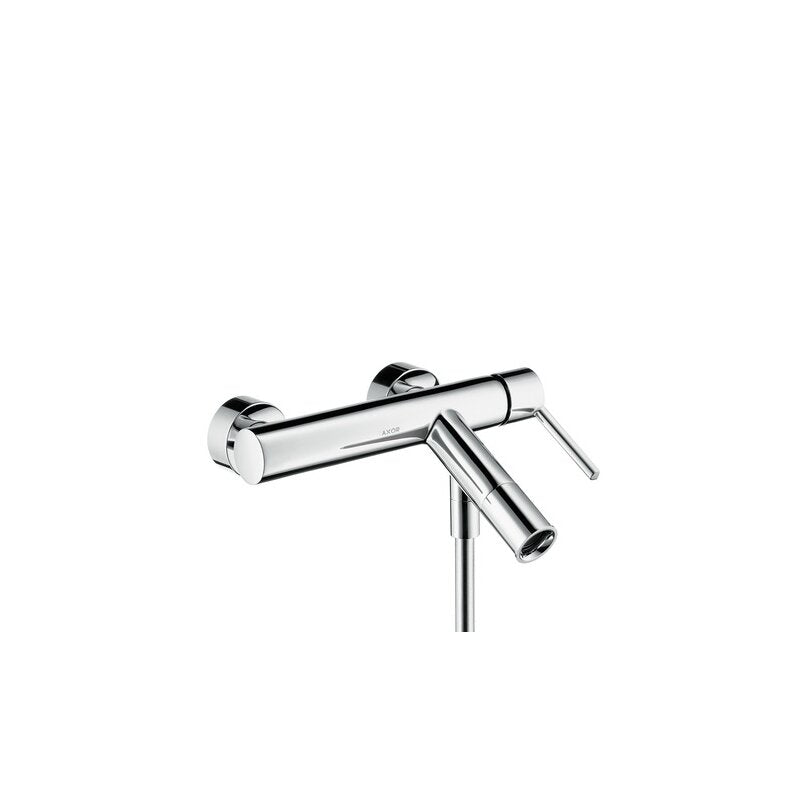

DN15 chrome lever handle

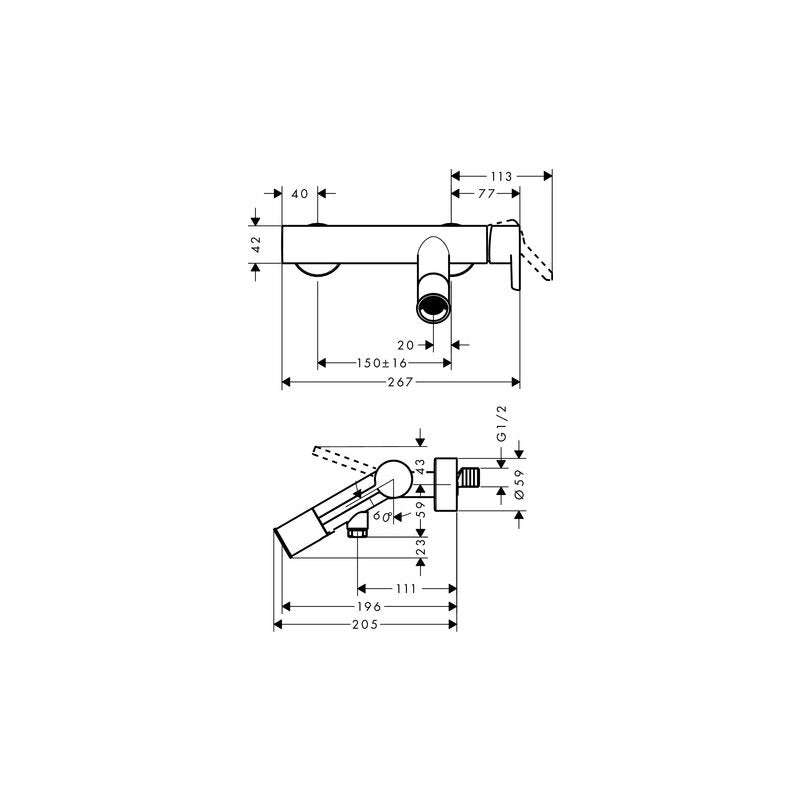

- Projection 200 mm
- Connection type: S-connectors
- Pitch size: 150 +- 16 mm
- Spray type fitting: normal spray
- Flow for bath inlet at 3 bar: 18 l/min
- Flow rate for hand shower at 3 bar: 16 l/min
- Minimum flow pressure: 1 bar
- Min. operating pressure: 1 bar
- Max. operating pressure: 10 bar
- Ceramic mixing system
- Temperature limit adjustable
- Diverter with automatic Provision
- Backflow preventer
- with silencer
- suitable for instantaneous water heaters
- Connection size: DN15
- Matching handle design to the AXOR Starck single lever basin mixers with lever handles
