Description:

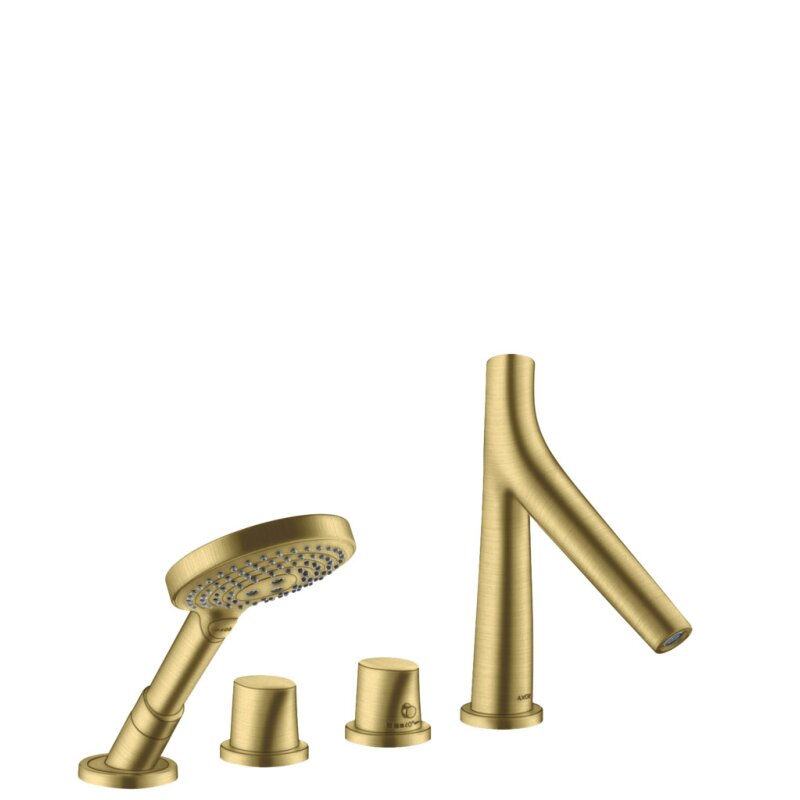

Organic F-Set for tile edge BB
- consists of: 4-hole Tile edge fitting, hand shower, Secuflex hose fitting
- Projection 190 mm
- 2 consumers
- Spray type fitting: laminar spray
- Hand shower jet type: Rain, RainAir, WhirlAir
- Maximum extension length of the hand shower: 1.10 m
- maximum flow rate at 3 bar: 17 l/min
- Flow for bath inlet at 3 bar: 17 l/min
- Flow rate for hand shower at 3 bar: 16 l/min
- Min. operating pressure: 1 bar
- Max. operating pressure: 10 bar
- Thermostat cartridge
- Safety lock at 40 degrees C
- Temperature limit adjustable
- Backflow preventer
- with automatic reset
- with silencer
- Connection type: base body
- Connection size: DN15
