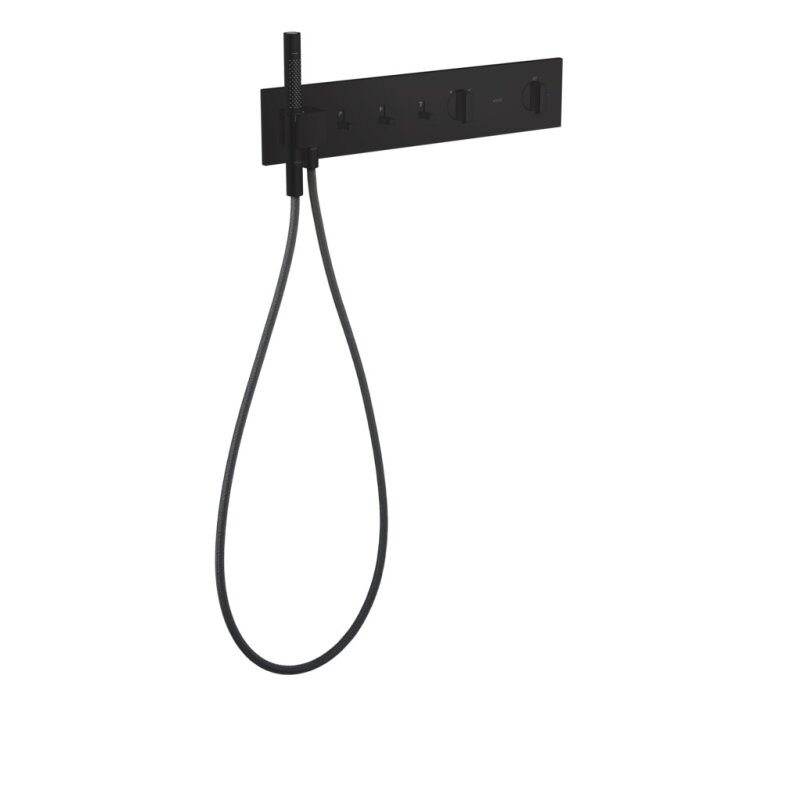

HANSGROHE 12572670 Thermostatmodul 540/110 Axor

SKU:12572670
GTIN:4059625489208

Description:
ShowerComposition 3 consumer MSW
- consists of: thermostat module, shower holder, bar hand shower, Textile shower hose
- 3 consumers
- simultaneous use of several consumers
- Sliding movement of the handle to turn on and turning off the water
- Temperature and volume control
- depending on the volume flow and Installation situation approx. 50% Flow reduction and integrated Shut-off function
- Thermostat cartridge to regulate the Temperature, start/stop valve for Serving consumers
- maximum flow rate at 3 bar: 26.6 l/min
- Flow rate lower outlet: 20 l/min
- Flow rate at the same time Usage of all consumers: 32.7 l/min
- Min. operating pressure: 1 bar
- Max. operating pressure: 10 bar
- Safety lock at 40 degrees C
- Temperature limit adjustable
- Backflow preventer
- Connection type: base body
- Sound group: I
- Flow class: B
- Hand shower jet type: Rain, Mono
