Description:

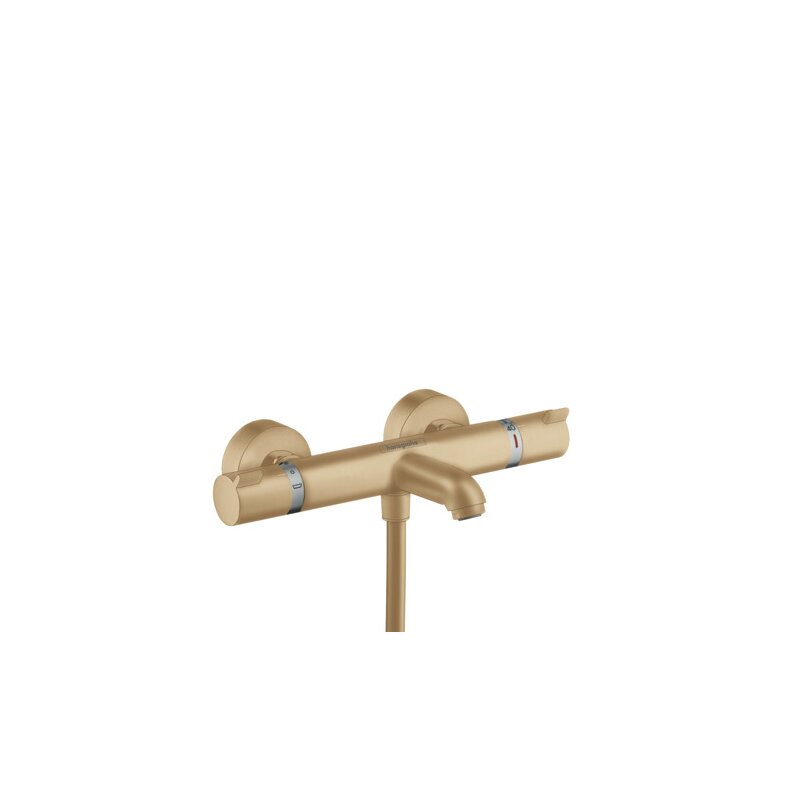

Surface-mounted DN15 BBR
- Consists of: Bath thermostat
- Throat 177 mm
- 2 consumers
- Pitch size: 150 +- 12 mm
- Spray type fitting: normal spray
- Flow for bath inlet at 3 bar: 20 l/min
- Flow rate for hand shower at 3 bar: 16 l/min
- Minimum flow pressure: 1 bar
- Min. operating pressure: 1 bar
- Max. operating pressure: 10 bar
- Thermostat cartridge to regulate the Temperature, shut-off/changeover valve
- Safety lock at 40 degrees C
- Temperature limit adjustable
- Backflow preventer
- with silencer
- Material handles: metal
- Connection type: S-connectors
- Connection size: DN15
- Sound group: I
- Flow class: D, A
- Integrated dirt trap
