Description:

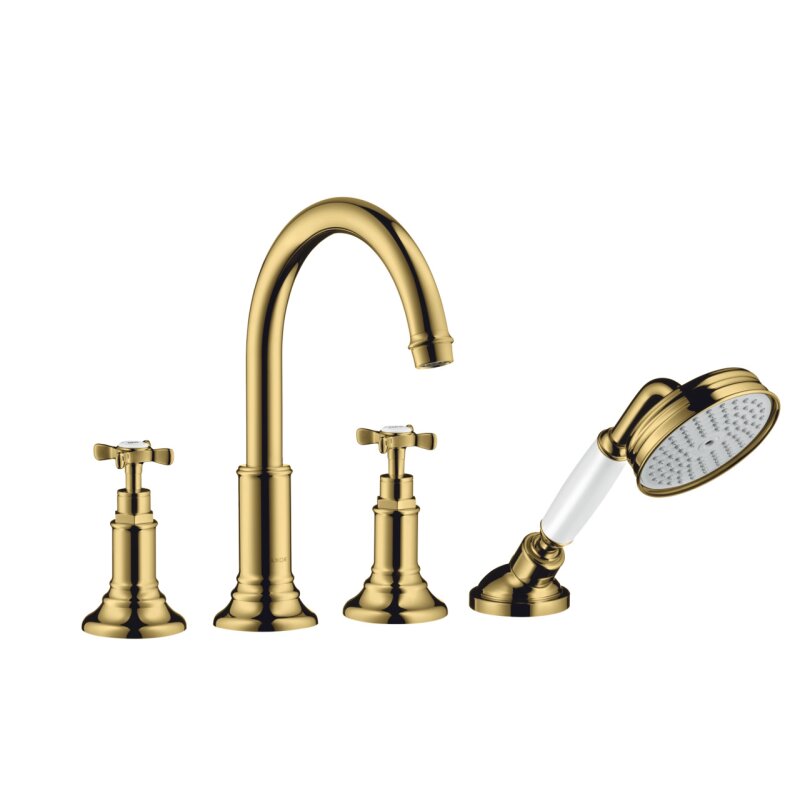

F-Set for tile edge PGO with cross handles
- consists of: 4-hole Tile edge fitting, hand shower, Shower hose, shower holder
- 2 consumers
- Throat: 196 mm
- Spray type fitting: normal spray
- Hand shower jet type: RainAir
- Maximum extension length of the hand shower: 1.10 m
- maximum flow rate at 3 bar: 21 l/min
- Flow for bath inlet at 3 bar: 21 l/min
- Flow rate for hand shower at 3 bar: 15 l/min
- Ceramic valves hot/cold 180 degrees
- Backflow preventer
- Connection size: DN15
- Connection type: base body
- Min. operating pressure: 1 bar
- Max. operating pressure: 10 bar
