Description:

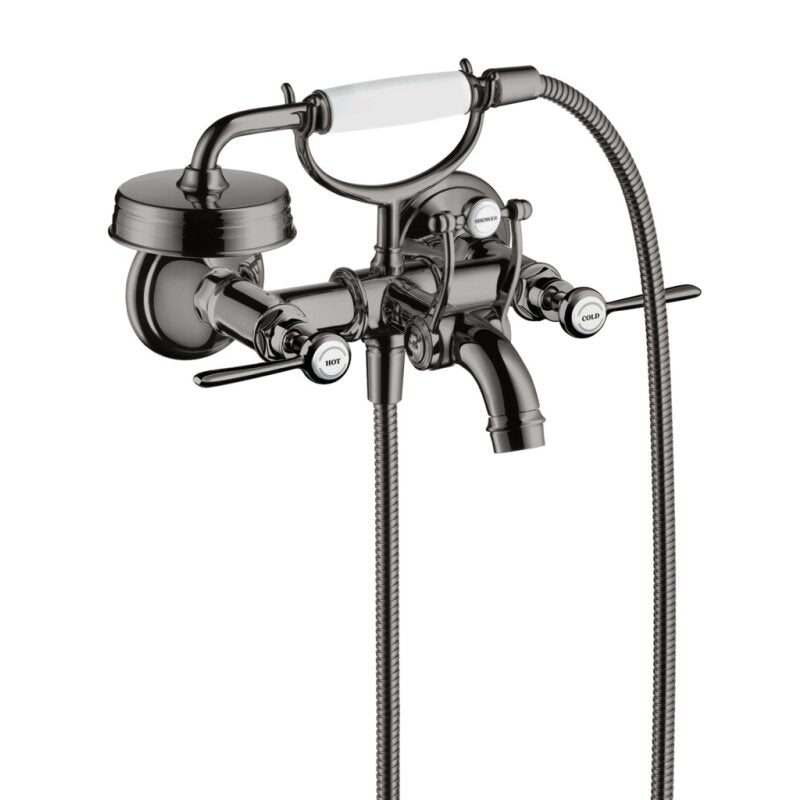

Montreux lever handle PBC
- consists of: 2-handle bath mixer, hand shower, shower hose, shower holder
- 2 consumers
- Throat: 224 mm
- Pitch size: 170 +- 32 mm
- Spray type fitting: normal spray
- Hand shower jet type: RainAir
- maximum flow rate at 3 bar: 20 l/min
- Flow for bath inlet at 3 bar: 20 l/min
- Flow rate for hand shower at 3 bar: 14 l/min
- Ceramic valves hot/cold 90 degrees
- Backflow preventer
- suitable for instantaneous water heaters
- Connection size: DN15
- Connection type: S-connectors
- Min. operating pressure: 1 bar
- Max. operating pressure: 10 bar
