Description:

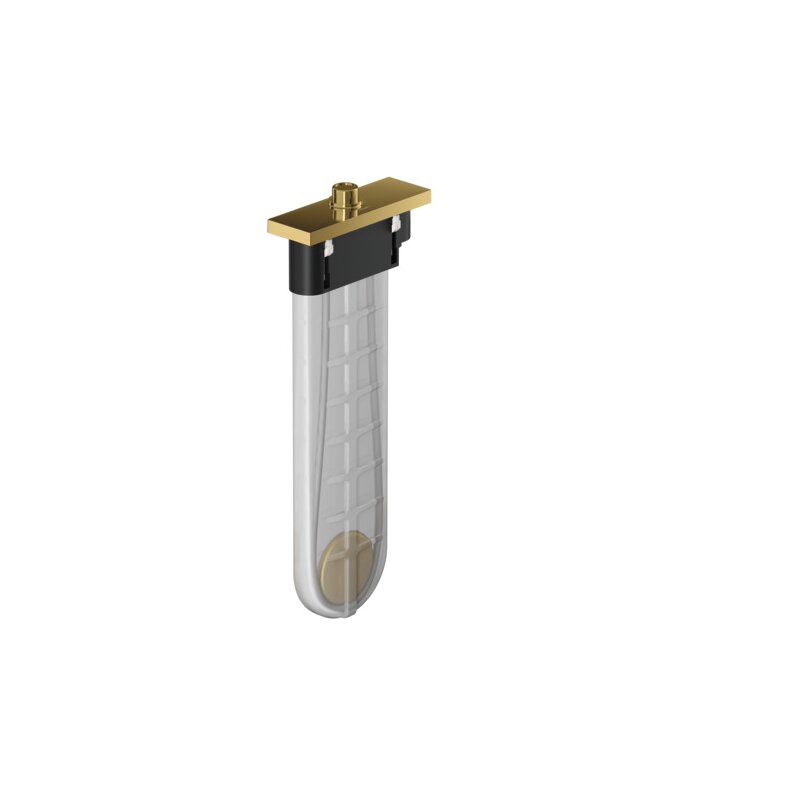

HG bath rim set sBox square PGO
- Consists of: hose box, Shower hose, rosette
- suitable for tub edge or Tile edge installation
- 1 consumer
- sBox for quiet, smooth-running and protected hose routing
- Flow rate at 3 bar: 9.5 l/min
- no additional service opening necessary
- Bath edge width at least 100 mm
- Clamping range: 0
- 30 mm
- Connection size: DN15
- maximum extension length of the hand shower 1.45m
- for service work at any time removable
- Intrinsically safe against backflow (according to DIN EN 1717)
