Description:

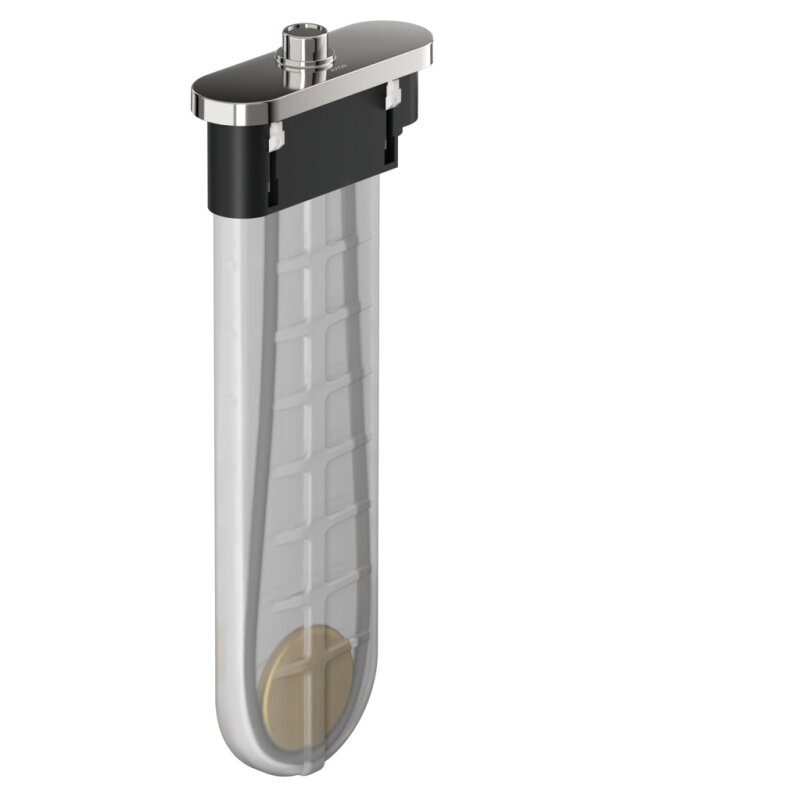

HG bath rim set sBox oval Axor PBC
- consists of: hose box, Shower hose, rosette
- suitable for tub edge or Tile edge installation
- 1 consumer
- sBox for quiet, smooth-running and protected hose routing
- Connection size: DN15
- no additional service opening necessary
- Bath edge width at least 100 mm
- Clamping range (max. tile height): 0
- 30mm
- maximum extension length of the hand shower 1.45m
- for service work at any time removable
- Intrinsically safe against backflow DIN EN 1717
- maximum flow rate at 3 bar: 9.5 l/min
