Description:

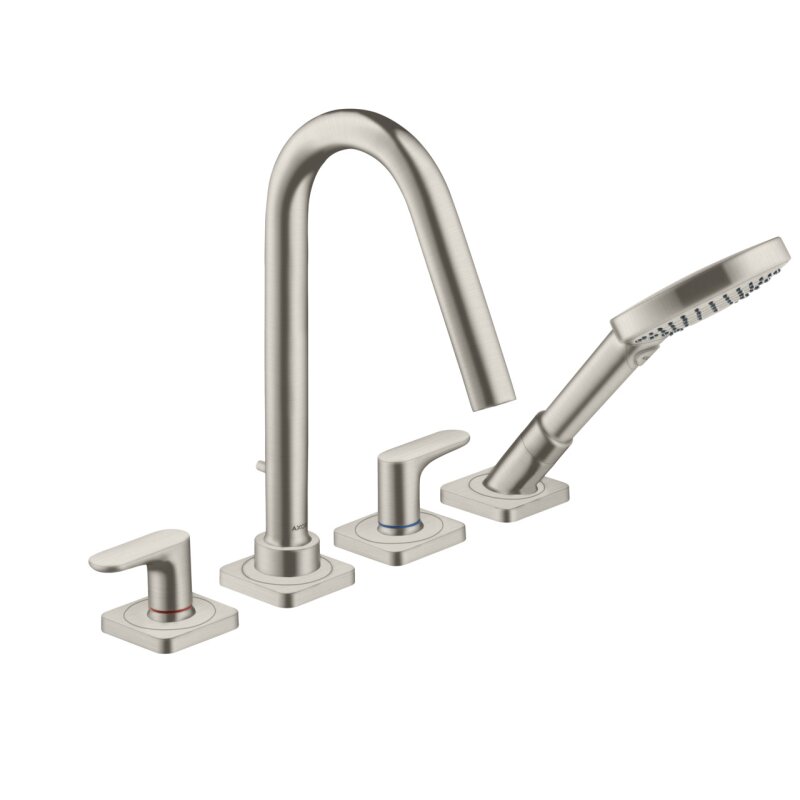

F-Set for tile edge BSO with lever handle
- consists of: 4-hole Tile edge fitting, hand shower, shower holder
- 2 consumers
- Throat: 190 mm
- Spray type fitting: normal spray
- Hand shower jet type: Rain, RainAir, WhirlAir
- Maximum extension length of the hand shower: 1.10 m
- Flow for bath inlet at 3 bar: 20 l/min
- Flow rate for hand shower at 3 bar: 18 l/min
- Ceramic valves hot/cold 90 degrees
- Diverter with automatic Provision
- Backflow preventer
- Connection size: DN15
- Connection type: base body
- Min. operating pressure: 1 bar
- Max. operating pressure: 10 bar
