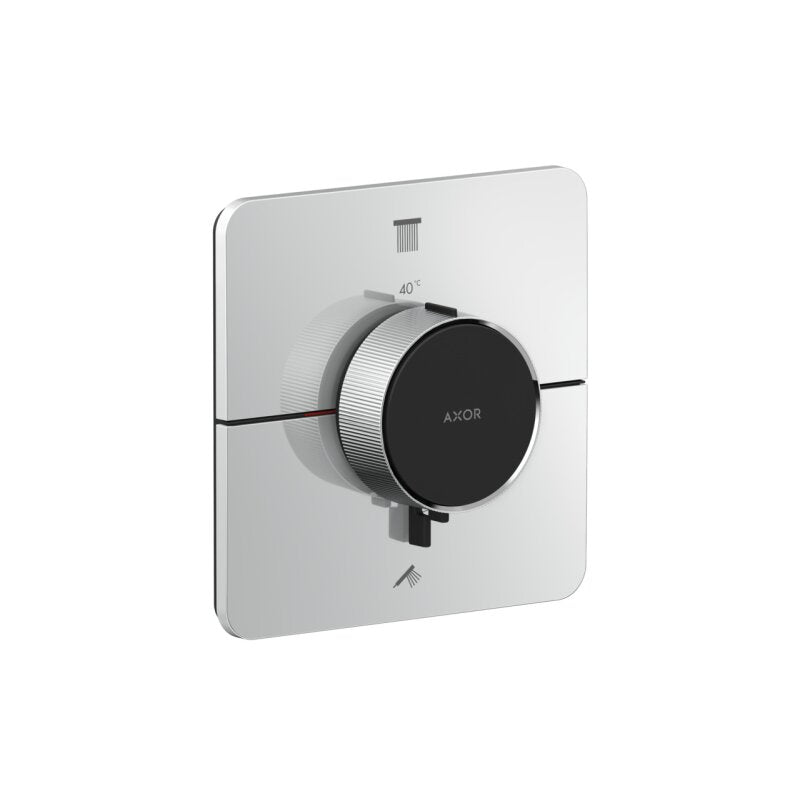

HANSGROHE 36754330 Thermostat UP Axor ShowerSelect ID

SKU:36754330
GTIN:4059625542385

Description:
Ready set 2 consumers softsquare PBC
- 2 consumers
- simultaneous use of several consumers
- convenient switching on/off Consumers through large-scale Select buttons
- precise temperature control vertical handle structure and haptic feedback thermostat handle
- Quantity control with stop function
- Thermostat cartridge to regulate the Temperature, start/stop valve for Serving consumers
- maximum flow rate at 3 bar: 22.1 l/min
- Flow rate top outlet: 20 l/min
- Flow rate lower outlet: 20 l/min
- Min. operating pressure: 1 bar
- Max. operating pressure: 10 bar
- flat rosette for more space in the Shower
- Rosette subsequently increased by +/- 3 degrees alignable
- easy installation pre-assembled function block
- Handles always at the same height regardless of the installation depth basic body
- Safety lock at 40 degrees C
- Temperature limit adjustable
- The thermostat offers the Possibility of thermal disinfection
- Button material: metal
- Material handles: metal
- Connection type: iBox base body universal 2 (#01400180)
- Select buttons are lasered Consumer symbols supplied (Rain large and hand shower)
- Sound group: I
- Flow class: B
