Description:

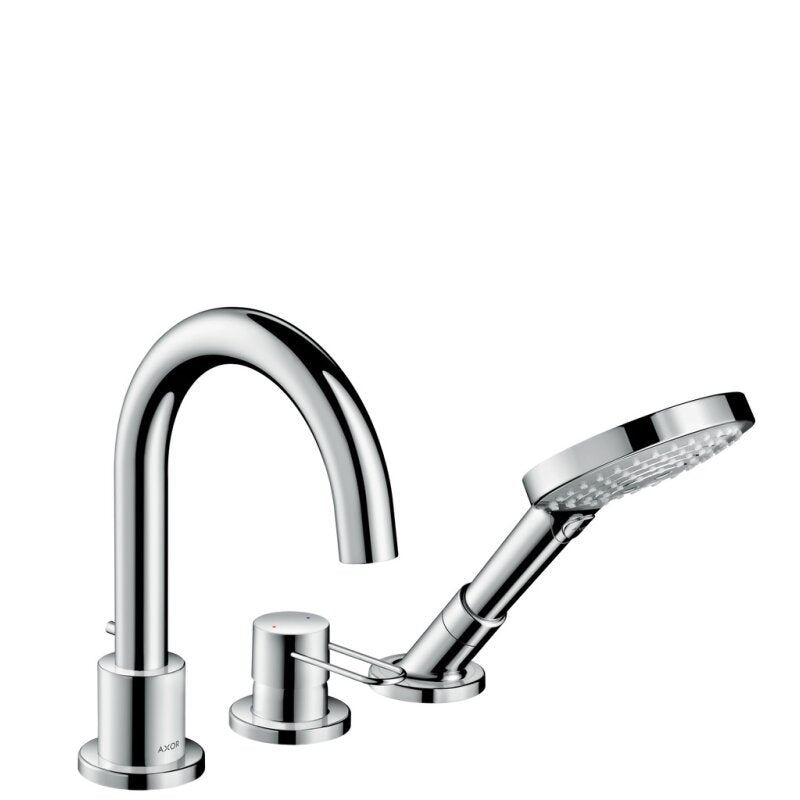

BBC bow handle for bathtub edge installation
- consists of: 3-hole single-lever edge-mounted bath mixer, Hand shower, shower holder
- 2 consumers
- Throat: 175 mm
- Spray type fitting: normal spray
- Hand shower jet type: Rain, RainAir, WhirlAir
- Maximum extension length of the hand shower: 1.10 m
- maximum flow rate at 3 bar: 18 l/min
- Flow for bath inlet at 3 bar: 18 l/min
- Flow rate for hand shower at 3 bar: 14 l/min
- Ceramic mixing system
- Temperature limit adjustable
- Connection size: DN15
- Connection type: base body
- Min. operating pressure: 1 bar
- Max. operating pressure: 10 bar
