Description:

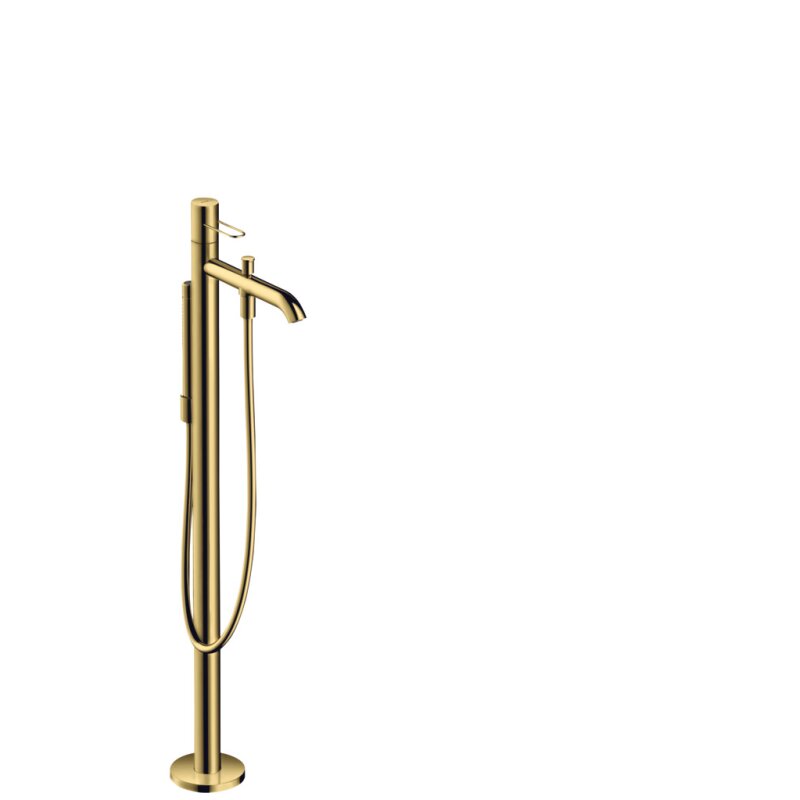

Bow handle for floor mounting PGO
- consists of: Single lever bath mixer floor-standing, hand shower, Shower hose, shower holder
- 2 consumers
- Throat: 259 mm
- Spray type fitting: normal spray
- Hand shower jet type: Rain, Mono
- maximum flow rate at 3 bar: 18 l/min
- Flow for bath inlet at 3 bar: 18 l/min
- Flow rate for hand shower at 3 bar: 13 l/min
- Ceramic mixing system
- Temperature limit adjustable
- Diverter with automatic Provision
- Backflow preventer
- Connection size: DN15
- Connection type: base body
- Min. operating pressure: 1 bar
- Max. operating pressure: 10 bar
