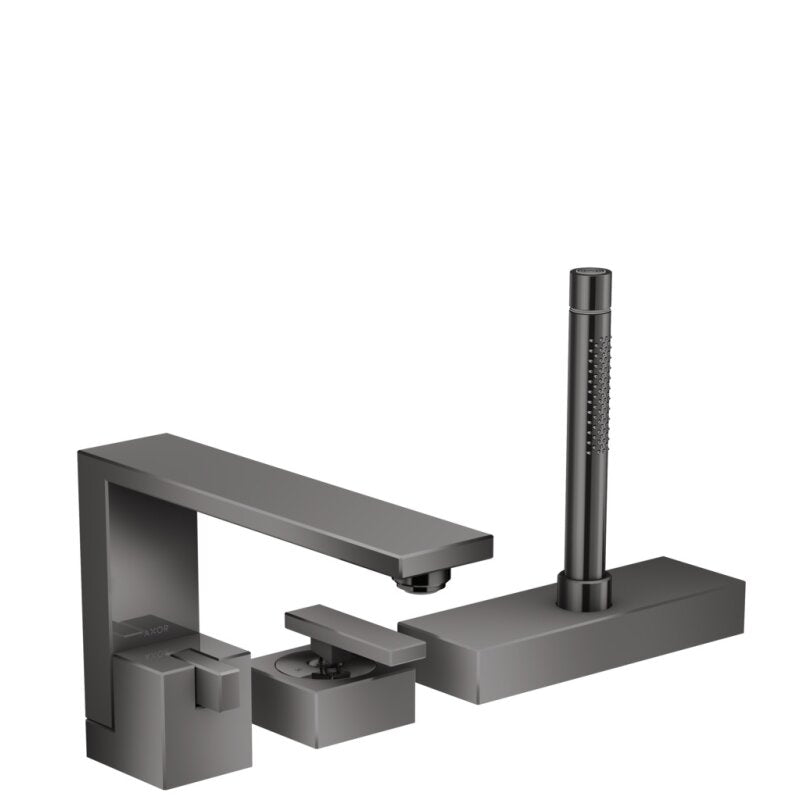

HANSGROHE 46430330 3-Loch Wannenmischer Axor Edge

SKU:46430330
GTIN:4059625265567

Description:
F-Set PBC tub edge installation
- consists of: 3-hole single-lever edge-mounted bath mixer, Bar hand shower, shower holder
- 2 consumers
- Throat: 210 mm
- Spray type fitting: normal spray
- Hand shower jet type: Rain, Mono
- Maximum extension length of the hand shower: 1.45m
- sBox for quiet, smooth-running and protected hose routing
- maximum flow rate at 3 bar: 20 l/min
- Flow for bath inlet at 3 bar: 20 l/min
- Flow rate for hand shower at 3 bar: 9 l/min
- Ceramic mixing system
- Temperature limit adjustable
- Backflow preventer
- suitable for instantaneous water heaters
- Connection size: DN15
- Connection type: base body
- Min. operating pressure: 1 bar
- Max. operating pressure: 10 bar
- for service work at any time removable
- no additional service opening necessary
