Description:

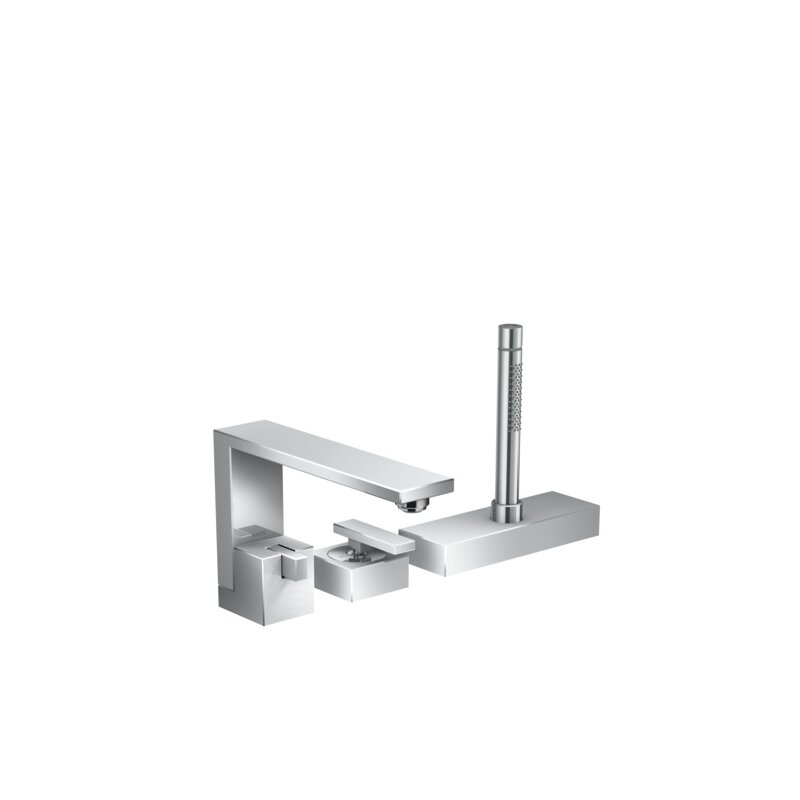

Diamond cut chrome tub rim installation
- Consists of: 3-hole single-lever edge-mounted bath mixer, Bar hand shower, shower holder
- Projection 210 mm
- Connection type: base body
- Spray type fitting: normal spray
- Hand shower jet type: Rain, Mono
- Maximum extension length of the hand shower: 1.45m
- Flow rate at 3 bar: 20 l/min
- Flow for bath inlet at 3 bar: 20 l/min
- Flow rate for hand shower at 3 bar: 9 l/min
- Minimum flow pressure: 1 bar
- Min. operating pressure: 1 bar
- Max. operating pressure: 10 bar
- Ceramic mixing system
- Temperature limit adjustable
- Backflow preventer
- suitable for instantaneous water heaters
- Connection size: DN15
