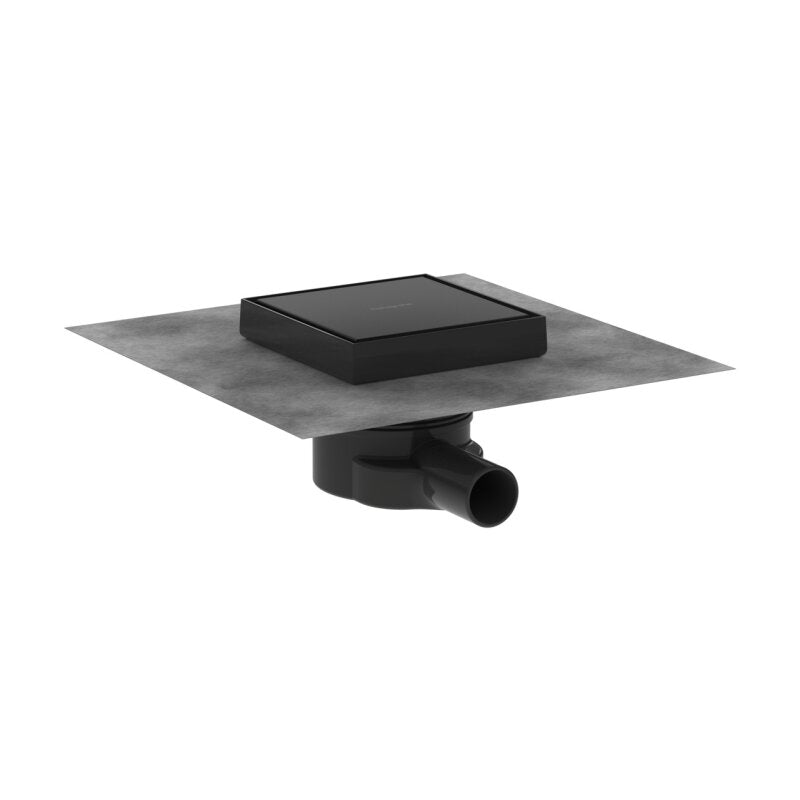

HANSGROHE 56249670 Komplettset Punktab.RainDrain Point

SKU:56249670
GTIN:4059625429648

Description:
150x150mm tileable MSW
- consists of: point sequence, Installation kit, factory pre-assembled sealing fleece, Basic body, siphon, building protection cap
- pre-assembled sealing membrane
- Can be tiled on the back
- Sealing water height: up to max. 50 mm
- Nominal diameter connection: DN40
- Direction of outlet: horizontal pre-assembled, can be used vertically
- easy to clean surface
- height adjustable by 10 mm
- up to 45 l/min drainage capacity
- Area of ​​application: new construction, renovation
- Tile thickness: up to 18 mm
- removable odor trap
- rotatable and adjustable siphon housing
- easy to clean siphon
- Cover lifter allows for easy Removing the finished set
- Type of odor trap: liquid
- Minimum height 54 mm
- Height of base body: 54 mm
- Siphon material: ABS
- Mounting type: free in space
- simplified installation due to of the shortenable siphon
- Cover material quality: stainless steel V2A (1.4301)
- suitable for primary drainage
