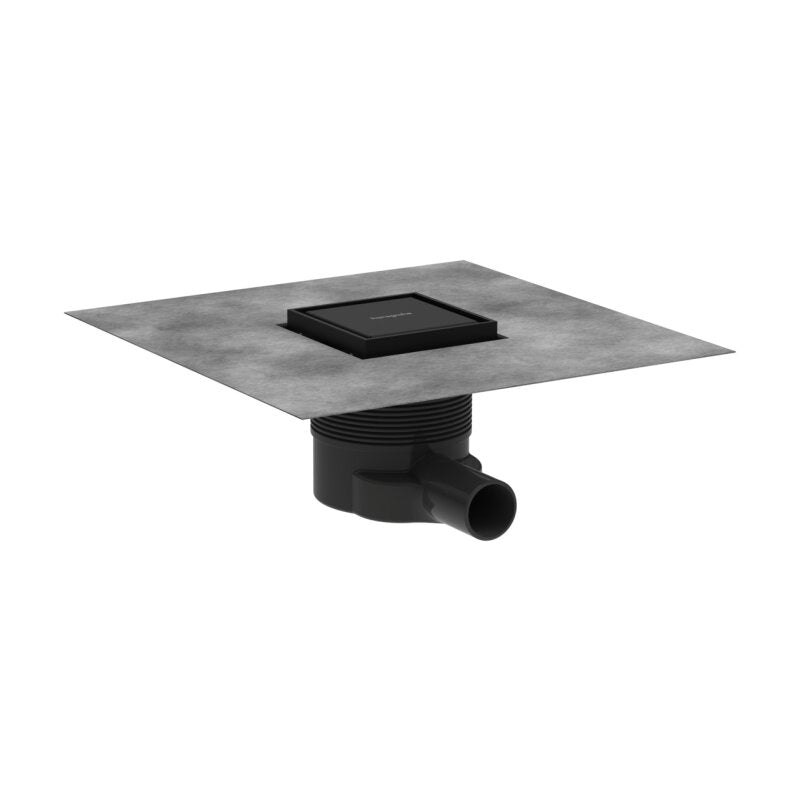

HANSGROHE 56250670 Komplettset Punktab.RainDrain

SKU:56250670
GTIN:4059625429624

Description:
Brilliance 100x100mm MSW
- consists of: point sequence, Installation set, basic body, factory pre-assembled sealing fleece, cover lifter, siphon, Construction protection cap
- pre-assembled sealing membrane
- Can be tiled on the back
- Sealing water height: up to max. 50 mm
- Nominal diameter connection: DN50
- Direction of outlet: horizontal
- easy to clean surface
- easy to adapt to the Tile thickness through the height-adjustable frame (7
- 18 mm)
- up to 35 l/min drainage capacity
- Area of ​​application: new construction, renovation
- removable odor trap
- rotatable and adjustable siphon housing
- easy to clean siphon
- Cover lifter allows for easy Removing the finished set
- Type of odor trap: liquid
- Minimum height 79 mm
- Height of base body: 59 mm
- Siphon material: ABS
- Mounting type: free in space
- simplified installation due to of the shortenable siphon
- Tile cavity depth: 12 mm
- Cover material quality: stainless steel V2A (1.4301)
- suitable for primary and Secondary drainage
