Description:

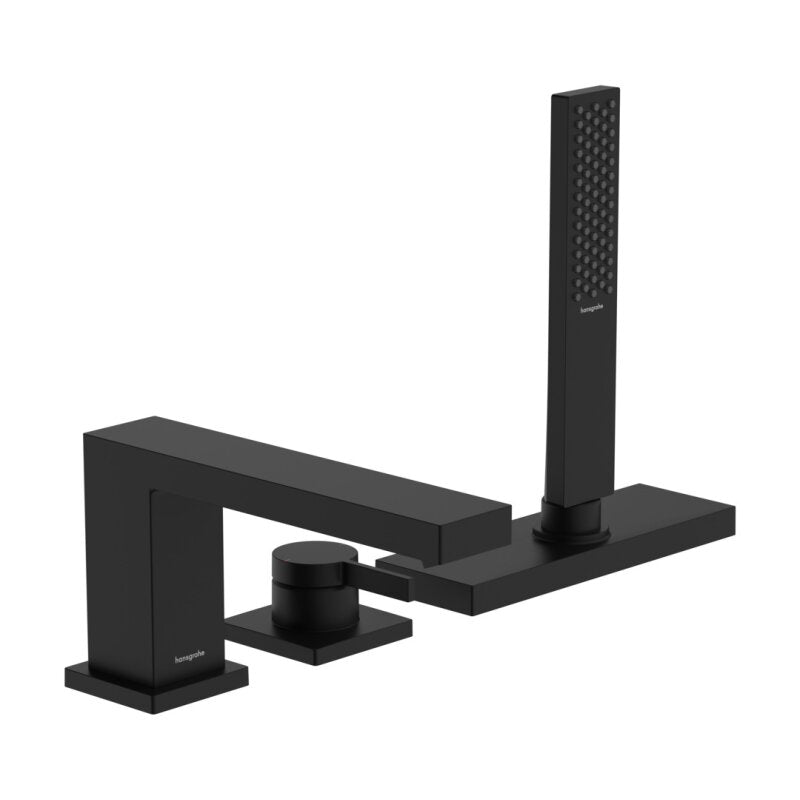

Tecturis E with sBox MSW
- consists of: 3-hole single-lever edge-mounted bath mixer, hand shower, shower holder, Shower hose, hose box
- 2 consumers
- Throat: 206 mm
- Spray type fitting: WaterfallStream
- Hand shower jet type: PowderRain
- maximum extension length of the hand shower: 1.45m
- sBox for quiet, smooth-running and protected hose routing
- maximum flow rate at 3 bar: 23 l/min
- Ceramic mixing system
- Diverter with automatic Provision
- Backflow preventer
- Intrinsically safe against backflow DIN EN 1717
- suitable for instantaneous water heaters
- Connection size: DN15
- Connection type: base body
- Bathtub edge installation
- Min. operating pressure: 1 bar
- Max. operating pressure: 10 bar
